| Part Number | Supply voltage (V) | Bus Fault Voltage (V) | With VIO Pin | Low Power Mode | TTL/CMOS | Data Rate(Mbps) Max | Package Group | Operating Temp （C） | Packing/QTY | Download |
|---|---|---|---|---|---|---|---|---|---|---|

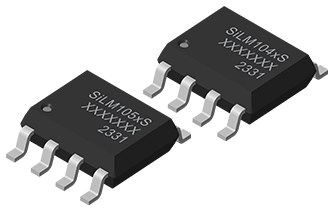

| SiLM104x/SiLM105xS系列（liè）（具有 CAN FD 和（hé）故障保护功能的 CAN 收发（fā）器） | 下载 | |||||||||
| SiLM1040SCA-DG | 4.5~5.5 | -65 ~ 65 | Y | Standby | CMOS | 8 | SOP8 | -40 ~ 125 | Reel/2500 | |
| SiLM1042SCA-DG | 4.5~5.5 | -65 ~ 65 | - | Standby | TTL | 8 | SOP8 | -40 ~ 125 | Reel/3000 | |
| SiLM1044SCA-DG | 4.5~5.5 | -65 ~ 65 | - | Standby | CMOS | 8 | SOP8 | -40 ~ 125 | Reel/2500 | |
| SiLM1050SCA-DG | 4.5~5.5 | -65 ~ 65 | Y | Silent | CMOS | 8 | SOP8 | -40 ~ 125 | Reel/2500 | |
| SiLM1051SCA-DG | 4.5~5.5 | -65 ~ 65 | - | Silent | TTL | 8 | SOP8 | -40 ~ 125 | Reel/2500 | |
| SiLM1057SCA-DG | 4.5~5.5 | -65 ~ 65 | - | Silent | CMOS | 8 | SOP8 | -40 ~ 125 | Reel/2500 | |
